Rubbers (sometimes called touches) are so called as they rub against the rosettes. The terms are interchangeable, but touch is preferred by some.
A rubber works fundamentally the same way a cam follower does on an engine, except in the opposite way.
- On an internal combustion engine, the cam follower moves based on the cam's shape.
- On a rose engine lathe, the the rubber is fixed, and the rosette moves the shaft to which it is attached, based on its own shape.

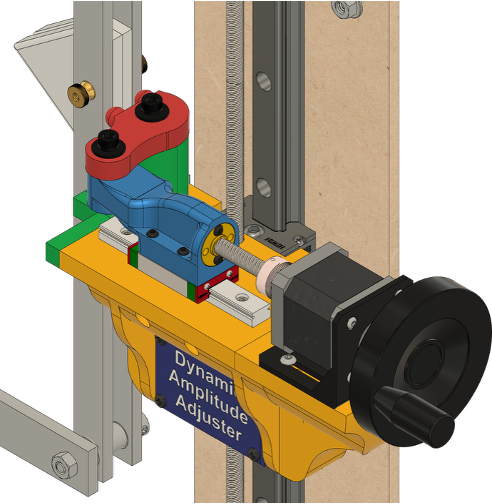

Two are shown in the picture to the right : the red and white pieces of plastic (only the red one is engaged with the rosette at this time).
Rubbers come in various forms or shapes, and each can produce a different result. Commonly used ones are :
- Pointed (with a small rounding on the end to minimize damage to the rosette),
- Bearing ended, where the bearing rides on the rosette, and
- T-shaped, where the wide T smoothes out the undulations of the rosette.
On a typical rose engine lathe, as the shaft rotates the object and the rosette, the rosette moves against the rubber, moving the shaft. The rubber stays fixed, making the whole headstock move according to the rosette's shape. As shown, this would cause a rocking motion.
I say "typical" as there are a class of rose engine lathes which have a fixed headstock, and the cutter moves according to the rosette. This is the Pudsey-Dawson approach, and the Paul Cler lathe is an example of this.
Recently, this approach is becoming more prevalent with the ready availability of linear bearings at a low cost. At the 2018 Ornamental Turners International Symposium, one demonstrator had a self-built rose engine lathe using this approach.
Examples of this device in use
This YouTube video shows rocking movement, along with differently shaped rubbers. I don't know the language used; but the video does show the movement well.
Eddie Bell gave this presentation, variations on Gorst finial at the 2018 Ornamental Turners International Symposium. This is a nice presentation about the effect rubbers can have on the object shape.
- Of Rubbers and Rosettes, by David Lindow. Rose Engine News, Volume 3, No. 1 - Spring-Summer, 2012, pg, 10
- Patterns On Side Grain Produced From Sine Waves, by John Tarpley. Rose Engine News, Volume 4, No. 1 - Spring-Summer, 2013, pg, 20
- Rosettes, by (unknown). Part about rubbers starts on pg. 5. Rose Engine News, Volume 4, No. 2, Tool Bonus Issue, 2014, pg, 3.
- The Santa Fe Symposium is an annual conference for jewelry makers, and often has topics around ornamental turning and especially guilloché. These include a bit of history and are great reads. One of note includes:
- The Parts and Processes of a Rose Engine in the Modern Shop by G. Phil Poirier, 2016. Pages 483-484 show a great overview of the effect on a rubber's radius vs. the shape of the rosette.
